Inch high quality Taper Roller Bearing LM11749/10

Inch high quality Taper Roller Bearing LM11749/10

$1.3-1.5 /Piece/Pieces

Payment Type:	L/C,T/T,D/P,D/A,Paypal
Incoterm:	FOB,EXW,Express Delivery,FCA,FAS,CFR,CIF,CIP,DEQ,DDP,DDU,DES,CPT
Min. Order:	1 Piece/Pieces
Transportation:	Ocean,Land,Air,Express
Port:	Qingdao,Sshanghai,Guangzhou

Inner diameter size:

17.462

Outer diameter:

39.878

Option:

Long service life
enhanced operational reliability
low and smooth coefficient

Contact Now

Product Description

Product Attributes

Model No.: LM11749/10

Brand: YZHB

Types Of: Roller

Structure: Taper

Applicable Industry: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Energy &Amp; Mining, Construction Works, Retail

Number Of Columns: Single Row

Place Of Origin: China

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	plastic sealing + packing box + packing waterproof film + carton packaging + polyester woven bag + packing wooden box waterproof membrane + wooden pallet

The file is encrypted. Please fill in the following information to continue accessing it

Product Description

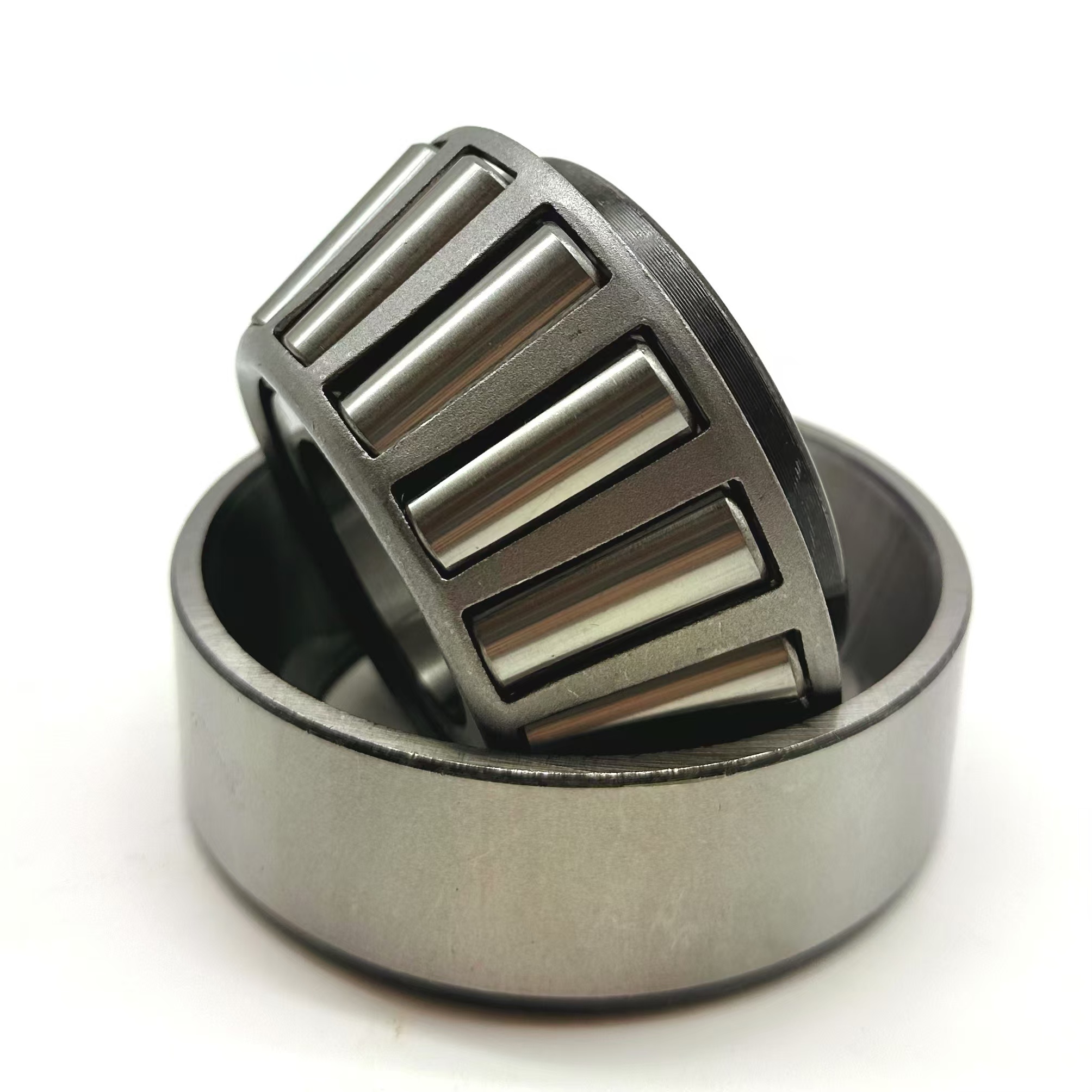

Single row Tapered Roller Bearings have an outer ring with an inner ring and a set of tapered rollers enclosed by a basket-shaped cage. The outer ring can be separated from the inner ring assembly, and according to the ISO Tapered Roller Bearing dimension standard, the outer ring or inner ring assembly of any standard type of tapered roller bearing should be internationally interchangeable with the outer ring or inner ring assembly of the same model. That is, in addition to the external dimensions and tolerances of the outer ring of the same model, the cone angle and cone diameter of the inner ring assembly must also comply with the relevant provisions of interchangeability.

Product Name : Tapered roller bearings

LM11749/10,LM11749/LM11710

Brand: YZHB or as your request

Material: Steel/Chrome Steel/GCR 15 material

Cage material : steel cage.

Number of scroll columns : single column/double column/triple column/quadruple column

Accuracy : P0, P6, P5, P4, O2 or as requested

Type : You can choose all types

Inner and outer packing: plastic sealing + packing box + packing waterproof film + carton packaging + polyester woven bag + packing wooden box waterproof membrane + wooden pallet.

Many companies think that packaging is not important, which is just the opposite of our philosophy, in international trade, the long-distance transportation of goods is affected by many uncertain environmental factors, we insist on the implementation, every shipment of products must do a series of packaging, 1. moisture-proof 2. spill-proof 3. anti-bump 4. rust prevention.

Features: Long service life, enhanced operational reliability, low and smooth coefficient. Our company uses more accurate rollers in order to have a longer service life of the product.

Quality standard : ISO492 (GB307.)

Quality Control Process : 1.Assembling 2.Cleaning 3.Rotation Test 4.Noise Inspection 5.Appearance Inspection 6.Anti-rust 7.Product Packaging

Service : OEM/ODM or customer logo is acceptable

Applications: It is the most widely used type of bearing in the machinery industry for low-noise machinery, automobiles, automotive rear axles, automotive transmissions, rolling mills, excavators and general machinery

Generally, the tapered angle of the raceway of the outer ring of a single row tapered roller bearing is between 10°~19°, which can bear the combined action of axial load and radial load at the same time. The larger the cone angle, the greater the ability to withstand axial loads. Bearings with large conical angles, with a posterior code plus B, and a taper angle between 25°~29°, can bear large axial loads. In addition, single row tapered roller bearings allow the clearance to be adjusted during installation.

1. Free Samples - We can send you samples for free, of course the size is small, and the shipping cost is paid by you

2. Advantages of product supply: Our company has invested a lot of resources and technology in the production of tapered roller bearings, and now we are able to complete all models and accept customized products.

3. Prompt reply response - All reception customer service of our company can reply to your email and provide you with quotation and problem feedback as soon as they receive the customer's inquiry information.

4. Competitive Price - Our company has been exporting bearings for many years, and we can offer you

competitive price and high quality
